PENTA-H Renewable Energy

PentaVault by PentaBESS

Battery storage that keeps your power at home

Since net billing, exported units earn about a quarter of what you pay to buy them back. PentaVault stores what your roof makes during the day so your own home uses it after dark.

Book a free site surveyStorage for business
Range
5.12 to 261 kWh
Chemistry
LiFePO4
Cycle life
Up to 8,000
Warranty
5 yr + 3 yr service

The range

Three cabinets, from a bedroom wall to a factory floor

Every cabinet shares the same chemistry, the same management system and the same warranty. What changes is capacity, form factor and how hard it is built to work.

Side by side

The specifications that decide which cabinet you need

Every figure below carries a unit, and cycle life is published against a residual capacity threshold rather than quoted bare.

PentaVault cabinet comparison: Anchor, Beacon and Citadel
SpecificationAnchorBeaconCitadel
Capacity5.12 kWh16.0 kWh261 kWh
ModelPV-5120PV-16000PV-261
ChemistryLiFePO4LiFePO4LiFePO4
Nominal voltage51.2 V51.2 V832 V
Nominal capacity100 Ah314 Ah314 Ah
Configuration1P16S1P16S1P52S
Max discharge100 A150 A125 kW
Peak, 5 seconds100 A300 A137 kW
Cycle life at 70%6,0008,000approximately 6,000
Depth of discharge95%95%98%
Operating temperatureminus 10 to 55 Cminus 10 to 55 Cminus 30 to 55 C
CoolingPassivePassiveLiquid with dehumidifier
Protection ratingIndoorIndoorIP54
CommunicationCAN, RS485, RS232CAN, RS485, RS232RS485
Expansion16 units in parallel16 units in parallelNot applicable
Dimensions600 x 470 x 254 mm825 x 470 x 254 mm970 x 1400 x 2300 mm

Why PentaVault

Four promises that carry every cabinet

Each one is a behaviour we can show rather than a marketing word, and the specifications above back them up.

  • Continuity

    Sub-20 millisecond hybrid inverter switchover. Your refrigerator, router, security and computer do not register the outage.

  • Longevity

    6,000 cycles on the Anchor and 8,000 on the Beacon, both verified to 70 percent residual capacity. No drift hidden in the fine print.

  • Compatibility

    Verified against Deye, Solis, Growatt, Sungrow, GoodWe, Inverex, SRNE and Voltronic. Tested in real installations, not asserted in a footnote.

  • Accountability

    In-country support through the PENTA-H network, a documented RMA process, and CE, UN38.3 and IEC 62619 certification.

Questions before you choose a cabinet

Which cabinet do I need?

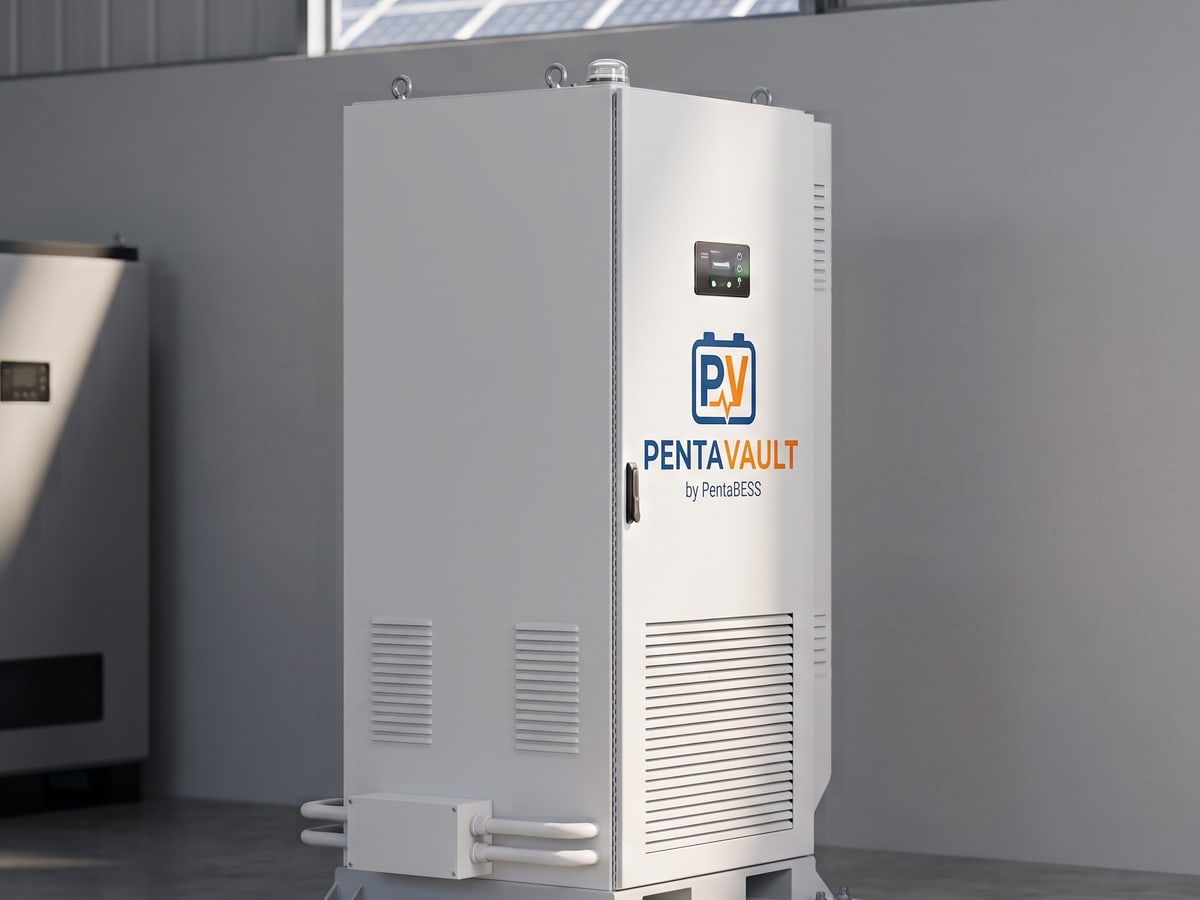

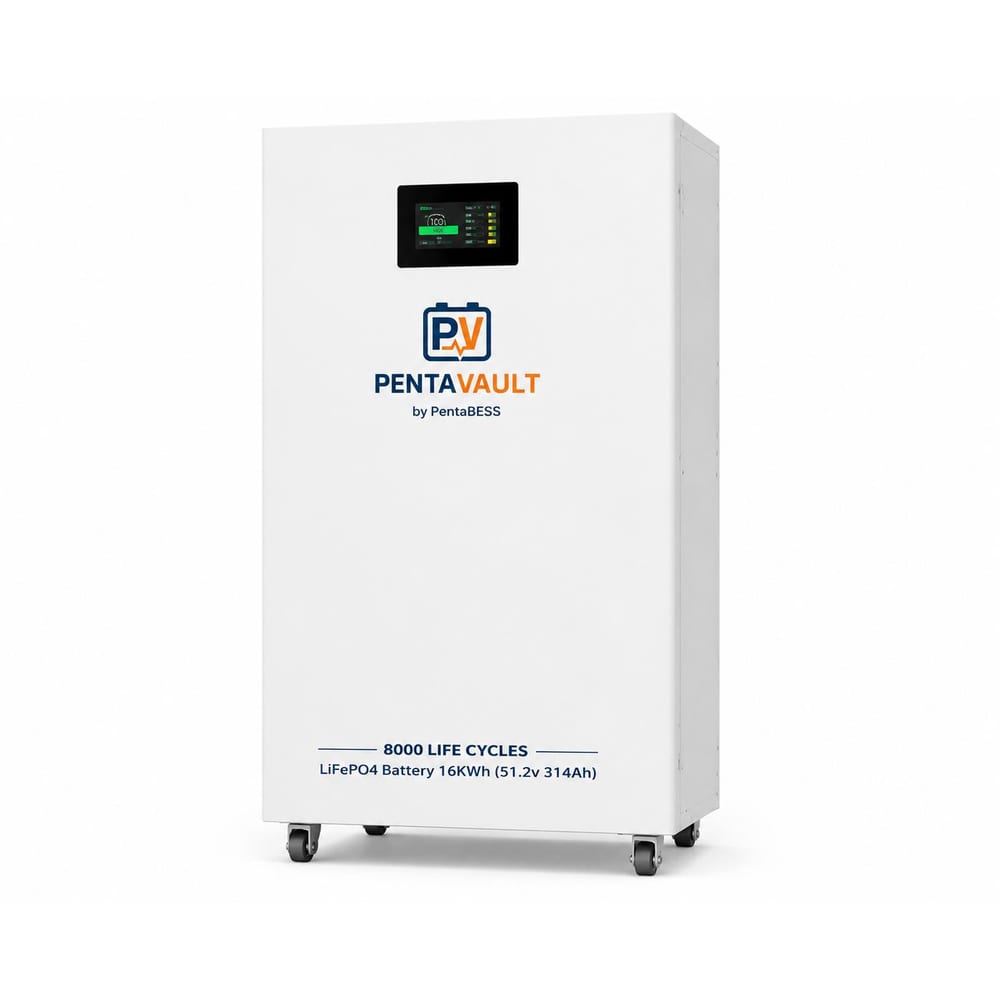

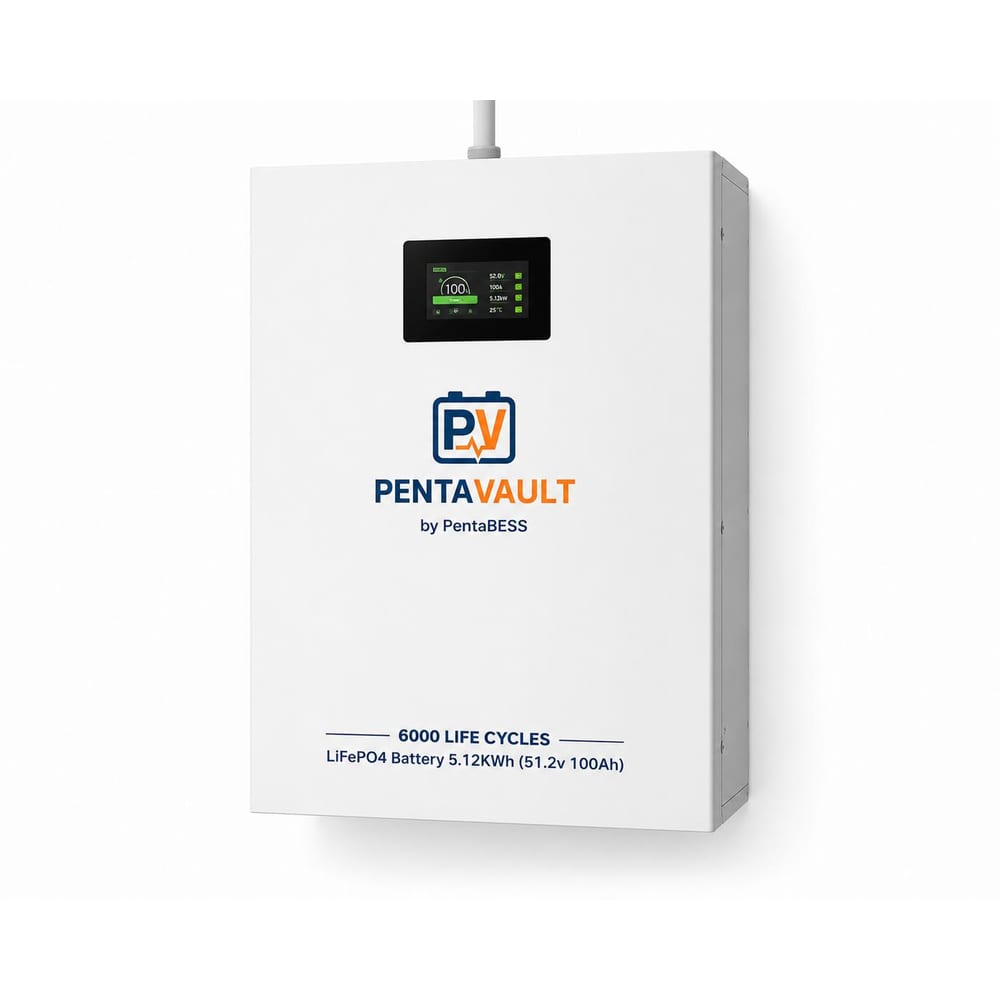

It depends on what must keep running rather than on the size of your house. The 5.12 kWh Anchor covers lights, fans, fridge, router and cameras for a full evening. The 16 kWh Beacon covers AC zones, pumps and refrigeration through a summer night. The 261 kWh Citadel is for commercial and industrial loads.
Can I start small and add later?
Yes. Up to sixteen residential cabinets run in parallel without changing the inverter, so a household can begin with one and add another as the load grows.
Is the quoted capacity usable or nominal?
The headline figures are nominal energy, with depth of discharge published separately at 95 percent for the residential cabinets and 98 percent for the Citadel. Multiply the two for usable capacity, and be wary of any supplier who will not give you both numbers.
What does 6,000 cycles actually mean in years?
At roughly one full cycle a day, about sixteen years before the pack reaches 70 percent of its original capacity. It does not stop working at that point; that is simply the threshold the rating is measured to. A cycle figure quoted without its residual capacity threshold is not a specification.
Who honours the warranty?
We do. The company that assembles the pack is the company that installs your system and the company that answers the phone. Five years replacement plus three years service support, documented in plain language.
Is LiFePO4 safe inside a house?
It is the appropriate chemistry for stationary storage, with a substantially higher thermal runaway threshold than the nickel based cells used in phones and laptops. The installation matters as much as the chemistry: correct isolation, cable sizing and ventilation clearance.
Will it work with the inverter I already have?
Probably, and we will confirm before you commit rather than after. PentaVault is tested against eight named brands with the working settings documented. Send us your make, model and firmware version.
What happens to the battery in a Pakistani summer?
The residential cabinets are rated to 55 degrees. For commercial and industrial sites we specify the liquid cooled Citadel, because passive cabinets lose usable capacity as ambient temperature climbs and that loss lands exactly when demand peaks.
How much does storage add to a solar quote?
It is the largest single variable in a hybrid system, and it is what turns exported units worth PKR 11.33 into consumed units worth PKR 37 to PKR 55. The survey establishes whether that trade works on your load before we quote a capacity.

Where to next

Find out which cabinet fits your home

An engineer measures your load, works out what must stay running and recommends a capacity. The survey and the quotation cost nothing.

Book a site surveyTalk to us
